Digital Oscilloscope OWON TAO3102 WIFI

Código: 915154
Digital Oscilloscope OWON TAO3102 WIFI
Información general
Descripción
Características
Entrega
Pago
Garantía
El precio aparecerá pronto

Información general

Digital Oscilloscope OWON TAO3102 WIFI
3.2 kg Garantía: 12 meses
Dual-channel oscilloscope with a bandwidth of 100 MHz, sampling rate of 1 GS/s, memory depth of 40 MB, an 8-inch 800 × 600 touchscreen LCD display, and WiFi module Leer más
El precio aparecerá pronto
El precio aparecerá pronto
No es posible calcular el coste de envío

Descripción

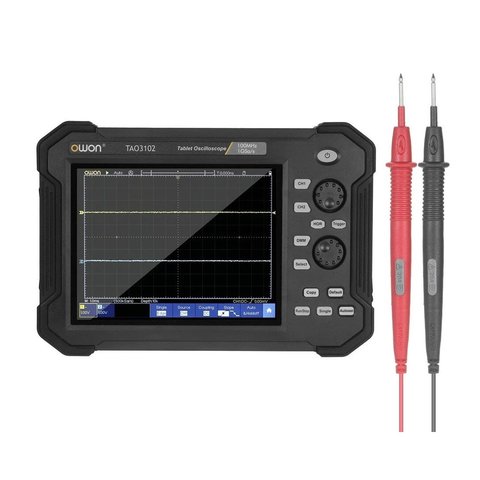

OWON TAO3102 WIFI is a two-channel tablet-type digital oscilloscope with a bandwidth of 100 MHz, a sample rate of 1 GS/s, and a memory depth of 40 MB. It features a large 800 × 600 color touchscreen 8-inch LCD display and a built-in WiFi module. The oscilloscope includes a built-in frequency counter and a digital multimeter with automatic range selection, capable of measuring voltage, current, resistance, and diode testing.

Features

  • Dual-channel oscilloscope + multimeter
  • Bandwidth: 100 MHz; Sample rate: 1 GS/s
  • 8-bit vertical resolution (A/D)
  • Record length: 40 MB; Waveform refresh rate: 45,000 wfms/s
  • Low background noise level
  • 800 × 600 high resolution 8-inch multi-touch color LCD display
  • Intuitive user interface
  • SCPI and LabVIEW supported
  • Decoding capabilities: I2C, SPI, RS232, and CAN (optional)
  • Communication interfaces: USB-host, USB-device, PictBridge USB port, LAN
  • WiFi module and WiFi support software pack to enable data exchange

Technical Specifications

Oscilloscope
Bandwidth 100 MHz
Sample rate 1 GS/s
Vertical resolution (A/D) 8 bit
Rise time ≤3.5 ns
Record length 40 MB
Waveform refresh rate 45,000 wfms/s
Horizontal scale 1 ns/div – 1000 s/div, step 1 - 2 - 5
Channels 4
Display 8-inch color LCD, 800 × 600, multi-touch
Input impedance 1 MΩ ± 2%, parallel with 15 pF ± 5 pF
Maximum input voltage 1 MΩ ≤ 300 Vrms
DC gain accuracy ±3%
Probe attenuation factor 0.001X - 1000X, step 1 - 2 - 5
Time base accuracy Maximum ±10 ppm
Input coupling DC, AC, GND
Vertical sensitivity 1 mV/div - 10 V/div (per channel)
Trigger types Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logics, I2C, SPI, RS232, CAN (option)
Bus decoding (optional) I2C, SPI, RS232, CAN
Trigger modes Auto, Normal, Single
Automatic measurements Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Mathematical functions addition (＋), subtraction (－), multiplication (×), division (÷), FFT, FFTrms, integration, differentiation, square root, user-defined functions, filter options (low-pass, high-pass, band-pass, band-reject)
Waveform storage 100 waveforms

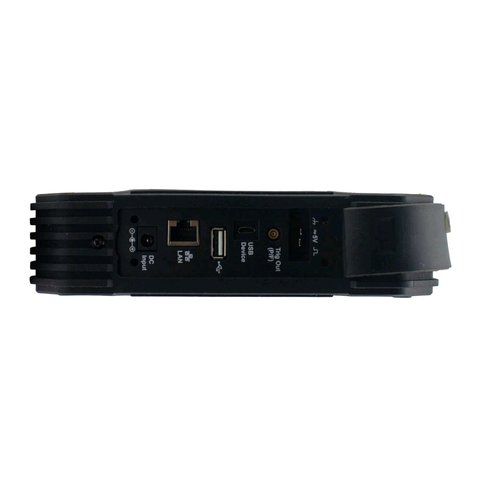

Communication interfaces USB-host, USB-device, USB port for PictBridge, LAN, WIFI
Frequency counter available
Battery 7.4 V, 8000 mAh, 5 hrs of operation
Dimensions 270 × 191 × 48 mm
Weight c. 1.7 kg
Built-In Multimeter
Display 4 ½ count
Voltage mV: 20,000 mV - 200,00 mV
DCV: 2.0000–1000.0 V
ACV: 2.0000–750.0 V
Current ACD: 10.00 A
ACA: 10.00 A
Resistance 200.00 Ω - 100.00 MΩ
Diode testing available
Auto ranging available

User Guide

PDF  Download OWON TAO3102 WIFI User Guide

Package Contents

  • OWON TAO3102 WIFI digital oscilloscope — 1 pc.
  • Probes — 4 pcs.
  • Probe adjuster — 1 pc.
  • Power cable — 1 pc.
  • Adapter — 1 pc.
  • USB cable — 1 pc.

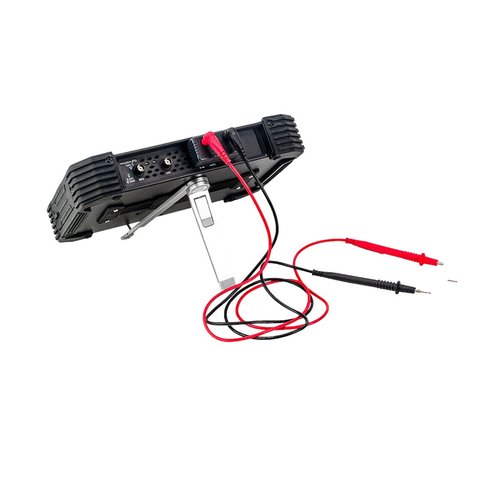

  • Stand — 1 pc.
  • BNC adapter — 1 pc.
  • Software CD — 1 pc.
  • User manual — 1 pc.
El fabricante se reserva el derecho a cambiar el contenido del paquete, el aspecto exterior y las características del producto. Para mayor información contacte con nuestro personal de las ventas.
Reproducción de materiales publicados en la página web gsmserver.es es permitida únicamente con referencia expresa e indicación de enlace para cada segmento de contenido copiado.

Características

Cantidad de canales
  • de 2 canales
Banda de frecuencias
  • 100 MHz
Tipo
  • portátil
  • táctil
Frecuencia de muestreo
  • 1 GS/s
Diagonal de pantalla
  • 8,0" TFT LCD
Capacidad de memoria
  • 40 MB
