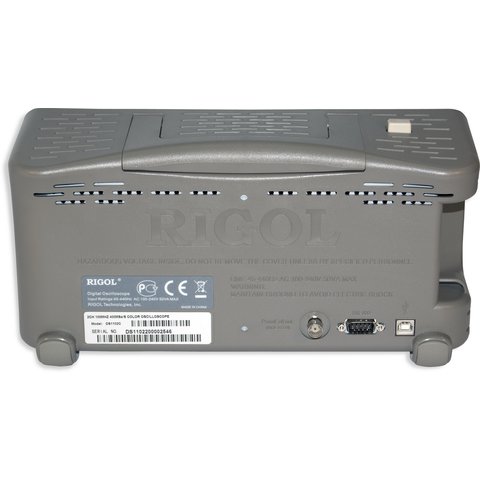

RIGOL DS1022C digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1022C is ideal for production tests, field service, research and design and all of the applications involving analog/digital circuits test and troubleshooting, as well as education and training.
Download RIGOL DS1022C digital oscilloscope user manual
| Bandwidth | 25 MHz |
| Real time sample rate | 400 MSa/s |
| Equivalent sample rate | 25 GSa/s |
| Memory depth |
|
| Rise time | 14 ns |
| Time base range | 20 ns/div - 50 s/div |
| Trigger modes | Edge, Video, Pulse Width, Slope, Alternate |
| Input impedance | 1 M Ω || 13 pF |
| Vertical sensitivity | 2 mV/div - 5 V/div |
| Vertical resolution | 8 bits |
| Maximum input voltage | 400 V (DC+AC peak) |
| Automatic measurements | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB |
| Math | Add, Subtract, Multiply, FFt |
| Storage |
|
| Display | 5.7-inch color LCD, 320 x 234 |
| Power source | 100-240 V / 50 VA max |
| Weight | 2.3 kg |
| Dimensions | 303 x 154 x 133 mm |
