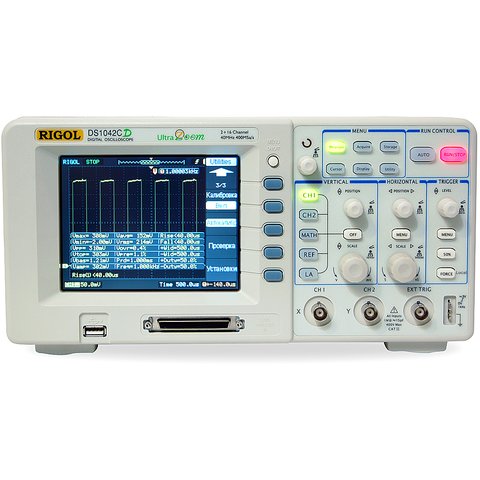

Digital Oscilloscope RIGOL DS1042C
Código: 810632
Digital Oscilloscope RIGOL DS1042C
Información general
Descripción
Características
Entrega
Pago
Garantía
Descontinuado
Información general
4.5 kg 110, 220 V Garantía: 36 meses
Dual channel digital oscilloscope with bandwidth - 40 MHz, real-time sample rate - 400 MSa/s, equivalent sample rate - 25 GSa/s. Leer más
Descontinuado
Descripción
RIGOL DS1042C digital oscilloscope offers exceptional waveform viewing and measurements in a compact, lightweight package. RIGOL DS1042C digital oscilloscope is ideal for production tests, field service, research and design and all of the applications involving analog/digital circuits test and troubleshooting, as well as education and training.
RIGOL DS1042C Digital Oscilloscope Features
- Ultra compact design, small dimensions
- 5.7-inch color LCD display
- Memory depth: 1M points (Single Channel), 512K points (Dual Channels)
- Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
- Adjustable trigger sensitivity: filters noise from the trigger signal to avoid false triggers
- 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
- 20 automatic measurements
- Cursor measurements: Manual, Track and Auto Measure Modes
- 10 waveforms, 10 setups, BMP and CSV storage
- Math functions: Add, Subtract, Multiply, FFT, Invert
- Automatic self calibration
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Dual channels plus external trigger
RIGOL DS1042C Digital Oscilloscope User Manual
Download RIGOL DS1042C digital oscilloscope user manual
RIGOL DS1042C Digital Oscilloscope Technical Specifications
| Bandwidth | 40 MHz |
| Real time sample rate | 400 MSa/s |
| Equivalent sample rate | 25 GSa/s |
| Memory depth |
|
| Rise time | 5.8 ns |
| Time base range | 5 ns/div - 50 s/div |
| Trigger modes | Edge, Video, Pulse Width, Slope, Alternate |
| Input impedance | 1 M Ω || 15 pF |
| Vertical sensitivity | 2 mV/div - 5 V/div |
| Vertical resolution | 8 bits |
| Maximum input voltage | 400 V (DC+AC peak) |
| Scroll range | 500 ms/div - 50 s/div |
| Automatic measurements | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB |
| Math | Add, Subtract, Multiply, FFt, Invert |
| Storage |
|
| Display | 5.7-inch color LCD, 320 x 234 |
| Power source | 100-240 V / 50 VA max |
| Weight | 2.3 kg |
RIGOL DS1042C Digital Oscilloscope Package
- RIGOL DS1042C digital oscilloscope (1 pc.)
- Power cable (1 pc.)

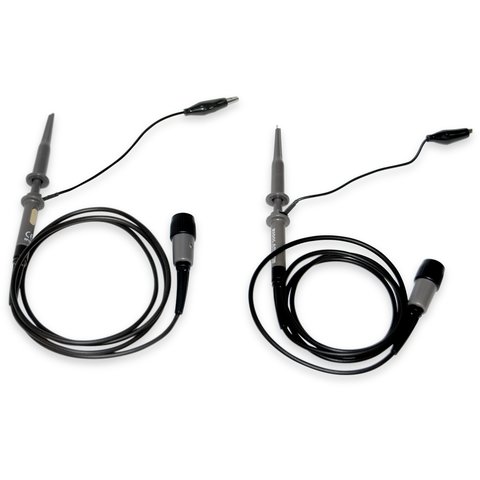

- Test leads (2 pcs.)
- USB data cable (1 pc.)
- User manual (1 pc.)
- Software (1 pc.)
El fabricante se reserva el derecho a cambiar el contenido del paquete, el aspecto exterior y las características del producto. Para mayor información contacte con nuestro personal de las ventas.
